Cables: Out of Sight, Still Accessible
Design ventilated projector cupboards, dual-compartment skirting channels, and hinged service panels so you never see a wire—or struggle to swap one.
Why Permanent Cable Tangles Ruin Small Rooms
A modest 5.1.2 home cinema requires at least fourteen separate connections: mains power leads for the display, receiver, subwoofer, and console; ultra-high-speed 48 Gbps HDMI interconnects; optical or Ethernet lines; and seven runs of oxygen-free copper speaker wire. When those cables hang behind an open glass stand or snake across skirting boards, they gather dust and visually fragment the wall plane.
Yet sealing wires permanently into plaster or behind screwed-down cabinet backs creates an equally frustrating problem the day you upgrade a console or troubleshoot an HDMI handshake drop. True cinema joinery separates cables into accessible service spine channels with generous bend radii and passive thermal chimney paths.

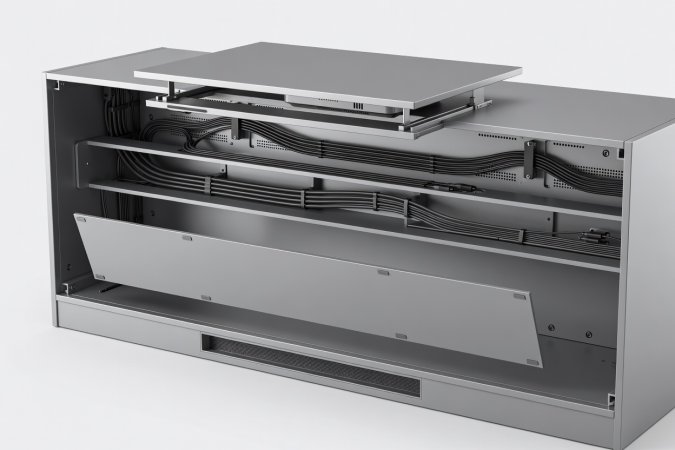

Credenza Spine Architecture: 85 mm deep rear service cavity behind magnetically latched birch-ply panels separates 230V mains on the lower tier from HDMI 2.1 and speaker lines on the upper brush rail.
Core Cable & Enclosure Rules
-
01
65 mm Minimum Fibre HDMI Bend Radius
Pinching an active optical HDMI 2.1 cable around a sharp 90-degree timber corner fractures the internal glass core. Route cables through sweeping J-hooks and 50 mm grommet brushes.
-
02
35 mm Power-to-Signal Separation
Prevent 50 Hz mains hum in unshielded subwoofer and speaker lines by running power leads in a separate lower tray; if they must cross, cross them at a strict 90° angle.
-
03
Right-Angle IEC & HDMI Adapters
Standard straight plugs demand 90 mm of wasted clearance behind an AV receiver. Right-angle connectors trim that margin to 32 mm, letting you use a 380 mm shallow cabinet.
Projector Storage Without Ceiling Mounts
Drilling heavy ceiling brackets into apartment concrete slabs or lath-and-plaster ceilings is often prohibited or structurally messy. Modern ultra-short-throw (UST) laser projectors and compact lifestyle gimbal projectors allow two clean furniture-based alternatives.
-
P1

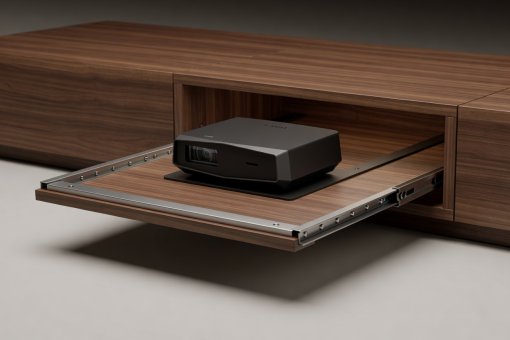

Indexed UST Sliding Drawer With Drag Chain
A 0.22:1 throw-ratio UST projector needs its lens positioned roughly 420 mm from the screen wall to cast a 100-inch image. Mount it inside a 380 mm deep credenza on locking heavy-duty ball-bearing runners (or a 12V trigger linear actuator) with a nylon cable drag chain so the drawer returns to the exact millimetre registration stop every evening.
-
P2
Rear Bookcase Alcove With Acoustic Baffle
For long-throw projectors, dedicate a 450 mm wide shelf at the rear of the room at 125 cm height. Line the three interior sides of the cubby with 25 mm black melamine acoustic foam to absorb cooling fan whine while leaving the front and a 60 mm rear chimney open for exhaust air.
Perimeter Routing for Renters & Solid Walls
Getting surround speaker wires and subwoofer interconnects from the front credenza to the back corners of the room does not require chasing brick walls.
-
R1
Chamfered Skirting-Top Micro Trunking
Use 22 mm × 12 mm quarter-round PVC raceway adhered along the top bullnose of your existing skirting board. Once painted in the exact matte emulsion as your skirting or wall, it reads as a deliberate architectural moulding shadow line.
-
R2
16 AWG Flat Adhesive Foil Speaker Ribbon
At just 0.52 mm thick, flat copper speaker tape runs safely underneath an area rug pad or behind a door architrave trim without creating a visible ridge Underfoot.
-
R3
Acoustic Slatted Timber Door Fronts
Solid timber cabinet doors block infrared remote signals and trap heat. Build cabinet doors from 18 mm oak slats spaced 12 mm apart backed by black acoustically transparent speaker cloth—remotes work seamlessly, centre-channel speakers can hide inside, and cool room air flows freely.
Cable Conduit & Thermal Ventilation Specifications
| Routing Method | External Profile | Cable Capacity | Renter Reversibility | Recommended Use Case |
|---|---|---|---|---|
| Dual-Channel Skirting Raceway | 38 mm × 16 mm | 1 mains lead + 3 speaker cables + 1 HDMI | High (removable acrylic gel tape) | Front-to-rear perimeter surround runs |
| Flat 16 AWG Copper Ribbon | 14 mm × 0.52 mm | 2-conductor speaker line (up to 12 m run) | Complete (under rug underlay) | Crossing doorway thresholds invisibly |
| 50 mm Brush-Lined Wall Spine | 50 mm × 20 mm | 4 HDMI 2.1 + 1 IEC power + optical | High (2 wall anchors + paintable cover) | Wall-mounted OLED to low credenza |
| Passive Plinth-to-Shadow-Gap Chimney | 45 mm slot × 900 mm wide | Dissipates up to 180W continuous heat load | Built into freestanding joinery | Fanless cooling for AVRs & consoles |
